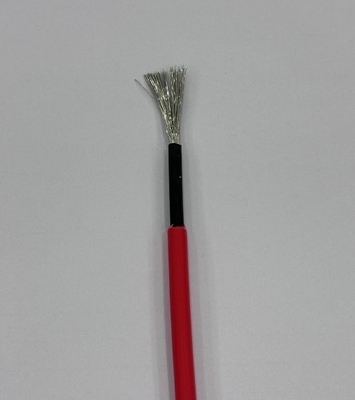

Solar Power Cable Green Energy Cable Max. Conductor Operating Temperature +120℃ AC 1.0/1.0kV(DC 1.5kV)
Dimension& Electrical Data:
| Spec. (mm²) |
Conductor Diameter (mm) |
Mean Thickness of Insulation (mm) | Mean Thickness of Sheath(mm) | Approximated Outer Diameter (mm) | Approximated Weight (kg/km) | conductor maximumDC resistance Ω/km at 20°C |
| 1×1.5 | 1.58 | 0.7 | 0.8 | 4.6 | 35 | 13.7 |
| 1×2.5 | 2.02 | 0.7 | 0.8 | 5 | 47 | 8.21 |
| 1×4 | 2.58 | 0.7 | 0.8 | 5.6 | 65 | 5.09 |
| 1×6 | 3.17 | 0.7 | 0.8 | 6.2 | 87 | 3.39 |
| 1×10 | 4.1 | 0.7 | 0.8 | 7.6 | 132 | 1.95 |
| 1×16 | 5.6 | 0.7 | 0.9 | 8.8 | 197 | 1.24 |
| 1×25 | 7.1 | 0.9 | 1 | 10.9 | 303 | 0.795 |
| 1×35 | 8.5 | 0.9 | 1.1 | 12.5 | 410 | 0.565 |
| Installation | Single Cable in the air | Single Cable on the surface of an object | Two cables in contact with each other on the surface of the object | ||
| Cross Section(mm²) | Ampacity(A) | ||||
| 1.5 | 30 | 29 | 24 | ||
| 2.5 | 41 | 39 | 33 | ||
| 4 | 55 | 52 | 44 | ||
| 6 | 70 | 67 | 57 | ||
| 10 | 98 | 93 | 79 | ||
| 16 | 132 | 125 | 107 | ||
| 25 | 176 | 167 | 142 | ||
| 35 | 218 | 207 | 176 | ||
| Working Temperature | 120℃ | EnvironmentTemperature | 60℃ | ||

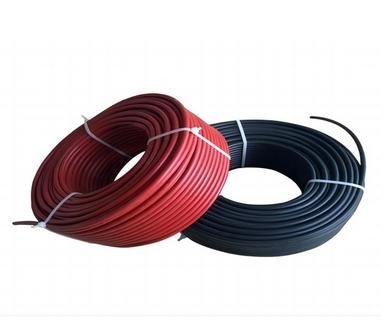

Packaging:
Certificates:
Tips:
When sending an inquiry about cables or building wires,please address the specification or parameters of cables shown as follows:
Cable name: Solar Power Cable Green Energy Cable Max. Conductor Operating Temperature +120℃ AC 1.0/1.0kV(DC 1.5kV)
Voltage: AC 1.0/1.0kV(DC 1.5kV)
Cross section: for example: 1×4mm² (It means there is one conductor inside this cable and the size of this conductor is 4 square millimeters.)
Length: for example: 1000 meters
Harbor& postcode: for example: Yantian port,Shenzhen,China. 518000
It will save you a lot of time and will also help us to prepare you an accurate quotation very quickly.Thanks!
