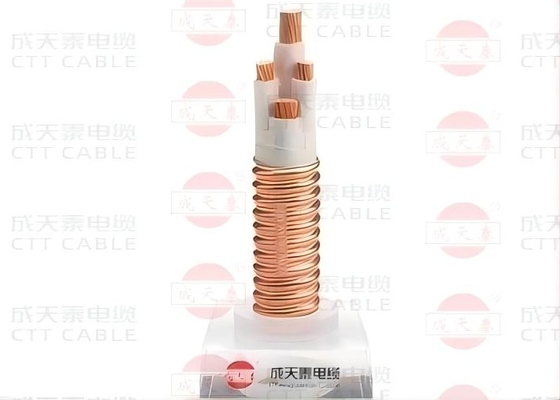

BTGZ,YTGRZ,YTTW,BTGZ fexible mineral insulated freproof cable is diferent from other common cables in use of high power e-beam(B ray) from high-pow-er electron accelerator for cross-link treatment of inorganic compound with special formulations,which enable the cable to withstand the operating temperature up to 125°C.The fre-resistance of BTGZ,YTGRZ has been greatly improved without the sacrifc of fexibility,which enables the cable under 1,000V to with stand the fame of 950°C for 3 hours and to resist the sprinkle and mechanical crash.
Fire Retardant Properties: These cables are treated with fire retardant materials, reducing the spread of flames and limiting smoke generation.

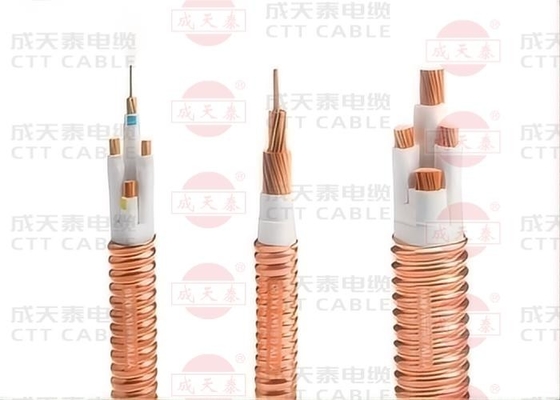

Corrugated Design: The corrugated structure can enhance flexibility and durability, making the cable easier to install in tight spaces while providing additional protection against physical damage.
Copper Conductors: Copper is known for its high conductivity, making these cables suitable for various applications requiring efficient power transmission.
Temperature Resistance: They can withstand high temperatures without degrading, ensuring safety and reliability.
Commercial and Industrial: Used in buildings, factories, and processing plants where fire safety is crucial.
Transportation: Ideal for railways and other transport systems to ensure passenger safety.
Power Distribution: Suitable for applications where fire safety and efficient power transmission are both critical.
| Item | BS 6387 | GB/12666.6 | IEC60331 |
|
Burn
|
(Level A) 650土40°C 180min (Level B) 750土40°C 180min (Level C) 950土40°C 180min (Level S) 950士40°C 20min |
(Type A) 950°C ~ 1000°C 90min (Type B) 750°C ~ 850°C 90min |
750°C,3h |
|
Sprinkl
|
(Level W) 650土40°C Burn first 15min And then burn and sprinkle 15min |
/ |
/ |
|
Mechanical crash
|
(Level X) 650士40°C 15min (Lenel Y) 750土40°C 15min (Lenel Z) 30 times within 15min |
/ |
/ |
|
Number of cores and cross section (mm2) |
Conductor structure (number of wires wire diameter (mm) |
Conductor diameter (mm) |
Mineral insulation thickness (mm) |
Inorganic mineral fireproof layer thickness (mm) |
Flame retardant sheath thickness (mm) |
Cable reference outer diameter (mm) |
Cable reference outer diameter (mm) |
Maximum DC resistance of conductor (Ω/km) |
Cable cut-off current A in air at ambient temperature 40℃ |
||||
|
主线芯 Main line core |
中线芯 Center line core |
主线芯 Main line core |
中线芯 Center line core |
主线芯 Main line core |
中线芯 Center line core |
20℃ |
90℃ |
||||||
| 1×1.5 | 1/1.38 | / | 1.38 | / | 0.80 | 0.00 | 1.5 | 1.4 | 12.8 | 205.8 | 12.1 | 15.40 | 25 |
| 1×2.5 | 1/1.78 | / | 1.78 | / | 0.80 | 0.00 | 1.5 | 1.4 | 13.3 | 226.2 | 7.41 | 9.48 | 31 |
| 1×4 | 1/2.25 | / | 2.25 | / | 0.80 | 0.00 | 1.5 | 1.4 | 13.8 | 253.2 | 4.61 | 5.90 | 41 |
| 1×6 | 1/2.76 | / | 2.76 | / | 0.80 | 0.00 | 1.5 | 1.4 | 14.3 | 285.9 | 3.08 | 3.90 | 52 |
| 1×10 | 7/1.35 | / | 4.05 | / | 0.80 | 0.00 | 1.5 | 1.4 | 15.7 | 359.6 | 1.83 | 2.33 | 71 |
| 1×16 | 7/1.70 | / | 5.10 | / | 0.80 | 0.00 | 1.5 | 1.5 | 16.8 | 444.4 | 1.15 | 1.47 | 92 |
| 1×25 | 7/2.14 | / | 6.00 | / | 0.80 | 0.00 | 1.5 | 1.5 | 18.4 | 575.5 | 0.727 | 0.924 | 120 |
| 1×35 | 7/2.54 | / | 7.20 | / | 0.80 | 0.00 | 1.5 | 1.6 | 19.7 | 702.5 | 0.524 | 0.670 | 150 |
| 1×50 | 19/1.82 | / | 8.20 | / | 0.80 | 0.00 | 1.5 | 1.6 | 21.0 | 876.9 | 0.387 | 0.490 | 180 |
| 1×70 | 19/2.18 | / | 9.90 | / | 0.80 | 0.00 | 1.5 | 1.7 | 23.0 | 1120.3 | 0.268 | 0.340 | 230 |
| 1×95 | 19/2.54 | / | 11.60 | / | 0.80 | 0.00 | 2.0 | 1.8 | 25.9 | 1498.1 | 0.193 | 0.250 | 285 |
| 1×120 | 19/2.85 | / | 13.00 | / | 0.80 | 0.00 | 2.0 | 1.8 | 27.9 | 1798.3 | 0.153 | 0.200 | 335 |
| 1×150 | 37/2.28 | / | 14.50 | / | 0.80 | 0.00 | 2.0 | 1.9 | 29.9 | 2150.0 | 0.124 | 0.160 | 385 |
| 1×185 | 37/2.54 | / | 16.10 | / | 0.80 | 0.00 | 2.0 | 2.0 | 32.2 | 2567.0 | 0.0991 | 0.130 | 450 |
| 1×240 | 48/2.54 | / | 18.40 | / | 0.80 | 0.00 | 2.0 | 2.1 | 34.9 | 3169.4 | 0.0754 | 0.0963 | 535 |
| 1×300 | 60/2.54 | / | 20.60 | / | 0.80 | 0.00 | 2.5 | 2.2 | 38.6 | 3962.7 | 0.0601 | 0.0770 | 620 |
| 1×400 | 60/2.93 | / | 23.70 | / | 0.80 | 0.00 | 2.5 | 2.3 | 42.5 | 5058.5 | 0.0470 | 0.0578 | 720 |
| 1×500 | 60/3.26 | / | 26.50 | / | 0.80 | 0.00 | 2.5 | 2.4 | 46.1 | 6152.0 | 0.0366 | 0.0462 | 835 |
| 1×630 | 60/3.63 | / | 29.80 | / | 0.80 | 0.00 | 3.0 | 2.6 | 18.2 | 7726.7 | 0.0283 | 0.0367 | 960 |
| 2×1.5 | 1/1.38 | / | 1.38 | / | 0.80 | 0.00 | 1.5 | 1.8 | 19.0 | 367.4 | 12.10 | 15.40 | 26 |
| 2×2.5 | 1/1.78 | / | 1.78 | / | 0.80 | 0.00 | 1.5 | 1.8 | 19.9 | 408.2 | 7.41 | 9.48 | 33 |
| 2×4 | 1/2.25 | / | 2.25 | / | 0.80 | 0.00 | 1.5 | 1.8 | 20.9 | 462.0 | 4.61 | 5.90 | 43 |
| 2×6 | 1/2.76 | / | 2.76 | / | 0.80 | 0.00 | 1.5 | 1.8 | 527.0 | 3.08 | 3.90 | 55 | |
| 2×10 | 7/1.35 | / | 4.05 | / | 0.80 | 0.00 | 1.5 | 1.8 | 23.5 | 672.5 | 1.83 | 2.33 | 76 |
| 2×16 | 7/1.70 | / | 5.10 | / | 0.80 | 0.00 | 2.0 | 1.8 | 26.6 | 937.0 | 1.15 | 1.47 | 97 |
| 2×25 | 7/2.14 | / | 6.00 | / | 0.80 | 0.00 | 2.0 | 1.9 | 29.8 | 1221.8 | 0.727 | 0.924 | 130 |
| 2×35 | 7/2.54 | / | 7.20 | / | 0.80 | 0.00 | 2.0 | 2.0 | 32.4 | 1494.9 | 0.524 | 0.670 | 160 |
| 2×50 | 19/1.82 | / | 8.20 | / | 0.80 | 0.00 | 2.0 | 2.1 | 35.0 | 1863.8 | 0.387 | 0.490 | 195 |
| 2×70 | 19/2.18 | / | 9.90 | / | 0.80 | 0.00 | 2.5 | 2.2 | 40.1 | 2538.4 | 0.268 | 0.340 | 245 |
| 2×95 | 19/2.54 | / | 11.60 | / | 0.80 | 0.00 | 2.5 | 2.4 | 43.8 | 3148.7 | 0.193 | 0.250 | 305 |
| 2×120 | 19/2.85 | / | 13.00 | / | 0.80 | 0.00 | 2.5 | 2.5 | 47.6 | 3785.5 | 0.153 | 0.200 | 355 |
| 2×150 | 37/2.28 | / | 14.50 | / | 0.80 | 0.00 | 3.0 | 2.7 | 52.7 | 4736.5 | 0.124 | 0.160 | 405 |
| 2×185 | 37/2.54 | / | 16.10 | / | 0.80 | 0.00 | 3.0 | 2.8 | 57.4 | 5640.5 | 0.0991 | 0.1300 | 465 |
| 2×240 | 48/2.54 | / | 18.40 | / | 0.80 | 0.00 | 3.0 | 3.0 | 62.8 | 6928.8 | 0.0754 | 0.0963 | 545 |
| 2×300 | 60/2.54 | / | 20.60 | / | 0.80 | 0.00 | 3.0 | 3.2 | 67.9 | 8304.7 | 0.0601 | 0.0770 | 620 |
| 2×400 | 60/2.93 | / | 23.70 | / | 0.80 | 0.00 | 3.0 | 3.4 | 75.9 | 10600.8 | 0.0470 | 0.0578 | 695 |
Multiple packaging methods, suitable for different transport conditions.
| A:Drum Diamter/meter | D:Overall Width/meter | A:Drum Diameter/meter | Volume of Drum/m^3 | Weight of Drum/kg | B:Internal Width/meter | C:Drum Core/mm |
| 1 | 0.87 | 1 | 0.870 | 28 | 0.73 | 450 |
| 1.2 | 0.87 | 1.2 | 1.253 | 35 | 0.73 | 550 |
| 1.4 | 0.87 | 1.4 | 1.705 | 50 | 0.73 | 700 |
| 1.6 | 1.03 | 1.6 | 2.637 | 70 | 0.89 | 800 |
| 1.8 | 1.13 | 1.8 | 3.661 | 78 | 0.99 | 950 |
| 2 | 1.23 | 2 | 4.920 | 100 | 1.09 | 950 |
| 2.2 | 1.28 | 2.2 | 6.195 | 125 | 1.09 | 1100 |
| 2.4 | 1.65 | 2.4 | 9.504 | 180 | 1.09 | 1250 |
| 2.6 | 1.65 | 2.6 | 11.154 | 230 | 1.49 | 1400 |
| 2.8 | 1.65 | 2.8 | 12.936 | 305 | 1.49 | 1450 |
| 3 | 1.65 | 3 | 14.850 | 332 | 1.49 | 1550 |
CETTIFICATIONS
Our products have obtained TUV Rheinland, IEC, CE, ISO, CE and many other international certifications.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally 5-15 days , according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Usually 30% T/T deposit , balance before shippment.
Q:Can we visit the factory?
A:We welcome you to visit the factory anytime.
When inquiring about cables or wires, please provide the following specifications or parameters for the cable (example)
1, Cable Type: CU / XLPE / SWA / PVC (mean Copper conductor, xlpe insulation, steel wire armouring, PVC sheathing)
2, Voltage Rating: 0.6/1 KV
3, Cross-Section: 3×120mm² (mean the cable contains three conductors, each with a cross-sectional area of 120 square millimeters.)
4, Length: 1000 meters
5, Port & Postal Code: Yantian Port, Shenzhen, China, 518000
6, terms of trade: FOB shenzhen
