Low Smoke Zero Halogen (LSZH) cables are designed to emit minimal smoke and no halogen when subjected to fire. This makes them a safer choice in environments where fire safety and air quality are critical, such as in public buildings, transportation systems, and enclosed spaces.
Low Smoke Emission: In the event of a fire, LSZH cables produce significantly less smoke than traditional cables, improving visibility and safety during evacuation.
No Halogens: They are made from materials that do not contain halogens (such as chlorine or bromine), which can produce toxic and corrosive gases when burned.
Improved Safety: The reduced toxicity of the smoke generated helps protect both people and sensitive equipment in the event of a fire.
Durability: LSZH cables are often resistant to abrasion, chemicals, and UV light, making them suitable for various demanding environments.
Commercial Buildings: Ideal for use in offices, shopping malls, and public areas.
Transportation: Commonly used in trains, airplanes, and ships.
Data Centers: Suitable for installations where equipment and personnel need protection from potential fire hazards.
| N2XBY 4x(1.5-400)mm2 0.6/1kV | |||||
|
cross section (mm2) |
outer diameter approx. (mm) |
weight of cable approx (kg/km) |
maximum DC resistance at 20℃ (Ω/km) |
min bending radius (mm) |
current rating in air at 25℃ (A) |
| 4×1.5 | 11.3 | 168.8 | 12.1 | 185 | 24 |
| 4×2.5 | 12.3 | 217.6 | 7.41 | 205 | 32 |
| 4×4 | 13.5 | 289.2 | 4.61 | 227 | 42 |
| 4×6 | 14.7 | 379.2 | 3.08 | 244 | 53 |
| 4×10 | 16.9 | 561.7 | 1.83 | 279 | 73 |
| 4×16 | 20.5 | 843.4 | 1.15 | 312 | 96 |
| 4×25 | 24.6 | 1255.7 | 0.727 | 368 | 130 |
| 4×35 | 27.3 | 1658.4 | 0.524 | 402 | 160 |
| 4×50 | 25.3 | 1996.2 | 0.387 | 417 | 195 |
| 4×70 | 29.4 | 2819.1 | 0.268 | 469 | 247 |
| 4×95 | 32.8 | 3861.4 | 0.193 | 522 | 305 |
| 4×120 | 36.5 | 4804.6 | 0.153 | 570 | 355 |
| 4×150 | 40.6 | 5975.7 | 0.124 | 636 | 407 |
| 4×185 | 45.2 | 7364.8 | 0.0991 | 694 | 469 |
| 4×240 | 50.7 | 9560.4 | 0.0754 | 770 | 551 |
| 4×300 | 56.0 | 11928.0 | 0.0601 | 870 | |
| 4×400 | 63.7 | 15315.0 | 0.0470 | 950 | |

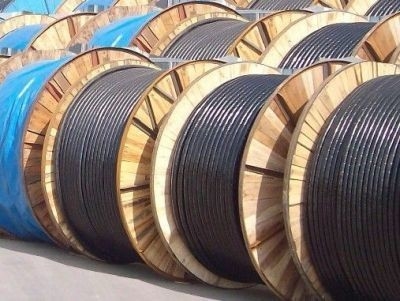

Multiple packaging methods, suitable for different transport conditions.
| A:Drum Diamter/meter | D:Overall Width/meter | A:Drum Diameter/meter | Volume of Drum/m^3 | Weight of Drum/kg | B:Internal Width/meter | C:Drum Core/mm |
| 1 | 0.87 | 1 | 0.870 | 28 | 0.73 | 450 |
| 1.2 | 0.87 | 1.2 | 1.253 | 35 | 0.73 | 550 |
| 1.4 | 0.87 | 1.4 | 1.705 | 50 | 0.73 | 700 |
| 1.6 | 1.03 | 1.6 | 2.637 | 70 | 0.89 | 800 |
| 1.8 | 1.13 | 1.8 | 3.661 | 78 | 0.99 | 950 |
| 2 | 1.23 | 2 | 4.920 | 100 | 1.09 | 950 |
| 2.2 | 1.28 | 2.2 | 6.195 | 125 | 1.09 | 1100 |
| 2.4 | 1.65 | 2.4 | 9.504 | 180 | 1.09 | 1250 |
| 2.6 | 1.65 | 2.6 | 11.154 | 230 | 1.49 | 1400 |
| 2.8 | 1.65 | 2.8 | 12.936 | 305 | 1.49 | 1450 |
| 3 | 1.65 | 3 | 14.850 | 332 | 1.49 | 1550 |
CETTIFICATIONS
Our products have obtained TUV Rheinland, IEC, CE, ISO, CE and many other international certifications.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally 5-15 days , according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Usually 30% T/T deposit , balance before shippment.
Q:Can we visit the factory?
A:We welcome you to visit the factory anytime.
When inquiring about cables or wires, please provide the following specifications or parameters for the cable (example)
1, Cable Type: CU / XLPE / SWA / PVC (mean Copper conductor, xlpe insulation, steel wire armouring, PVC sheathing)
2, Voltage Rating: 0.6/1 KV
3, Cross-Section: 3×120mm² (mean the cable contains three conductors, each with a cross-sectional area of 120 square millimeters.)
4, Length: 1000 meters
5, Port & Postal Code: Yantian Port, Shenzhen, China, 518000
6, terms of trade: FOB shenzhen
