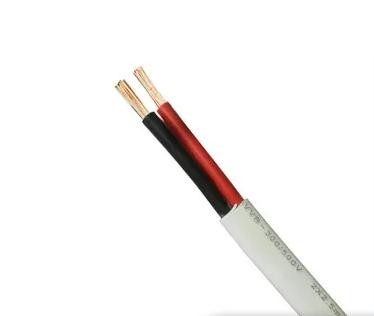

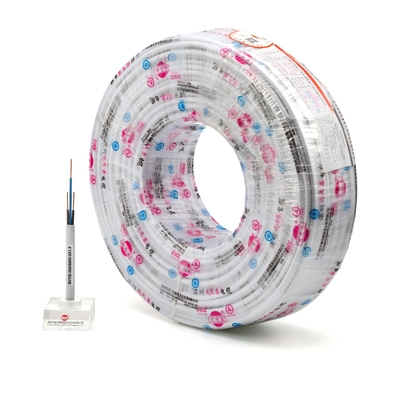

Copper Building Wire PVC Insulated&Jacketed Flat Wire 300 / 500V CU / PVC / PVC 60227 IEC 52
Dimension& Electrical Data:
Nominal section (mm2) |
Number/diameter of core (mm) |
Averagedia.(mm) |
Reference weight (kg/km) |
≤(Ω/km) Conductor resistance at20°C(Ω/km) |
|
| minimum | maximum | ||||
| 2×0.75 | 12×1/0.97 | 3.8×5.9 | 4.6×7.1 | 44 | 24.5 |
| 2×1.0 | 2×1/1.13 | 3.9×6.1 | 4.8×7.4 | 51 | 18.1 |
| 2×1.5 | 2×1/1.38 | 4.4×7.0 | 5.3×8.5 | 66 | 12.1 |
| 2×2.5 | 2×1/1.78 | 5.1×8.4 | 6.2×10.1 | 96 | 7.41 |
| 2×4 | 2×1/2.25 | 5.6×9.2 | 6.7×11.1 | 126 | 4.61 |
| 2×6 | 2×1/2.76 | 6.2×10.4 | 7.5×12.5 | 170 | 3.08 |
| 2×10 | 2×7/1.70 | 7.9×13.4 | 9.5×16.2 | 323 | 1.83 |
| 3×0.75 | 2×1/0.97 | 3.8×7.9 | 4.6×9.6 | 63 | 24.5 |
| 3×1.0 | 2×1/1.13 | 3.9×8.4 | 4.8×10.1 | 74 | 18.1 |
| 3×1.5 | 2×1/1.38 | 4.4×9.6 | 5.3×11.7 | 96 | 12.1 |
| 3×2.5 | 2×1/1.78 | 5.4×11.6 | 6.2×14 | 140 | 7.41 |
| 3×4 | 2×1/2.25 | 5.8×13.1 | 7.0×15.8 | 200 | 4.61 |
| 3×6 | 3×1/2.76 | 6.2×14.5 | 7.5×17.5 | 275 | 3.08 |
| 3×10 | 3×7/1.35 | 7.9×19.0 | 9.5×23 | 485 | 1.83 |
Certificates:
Drum Data:
Tips:
When sending an inquiry about cables or building wires,please address the specification or parameters of cables shown as follows:
Cable name: for example: Flat Copper Building Wire
Voltage: 300 / 500 V
Cross section: for example: 2×2.5mm² (It means there are two conductors inside this cable and the size of each conductor is 2.5 square millimeters.)
Length: for example: 1000 meters
Harbor& postcode: for example: Yantian port,Shenzhen,China. 518000
It will save you a lot of time and will also help us to prepare you an accurate quotation very quickly.Thanks!
