Home /Products/Medium Voltage Power Cables/Copper Core XLPE Insulated PVC Sheathed Cable Unarmoured 3.6/6kV to 26/35kV 3 Core

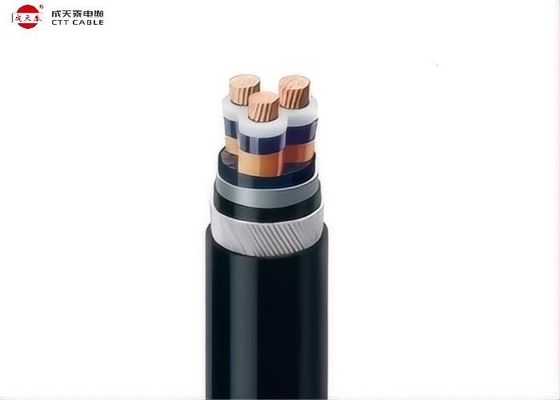

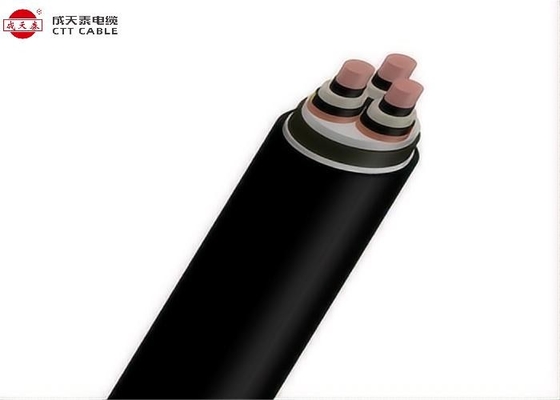

Copper Core XLPE Insulated PVC Sheathed Cable Unarmoured 3.6/6kV to 26/35kV 3 Core

500 Meters
MOQ
Copper Core XLPE Insulated PVC Sheathed Cable Unarmoured 3.6/6kV to 26/35kV 3 Core
Features Gallery Product Description Request A Quote
Features
Specifications
Insulated: XLPE
Insulation Screen: Semi-conductive Layer Of XLPE
Rated Voltage: 3.6/6kV To 26/35kV
Halogen-Free: Yes/No
Cable Length: As Per Requirement
Application: Indoor Use, General Purpose Wiring
Free Sample: Yes
Package: Coil In Foil
Highlight:

3 Core PVC Sheathed Cable

,

Copper Core PVC Sheathed Cable

,

26/35kV PVC Sheathed Cable
Basic Infomation
Place of Origin: China
Brand Name: CTT Cable
Certification: IEC60502-1, IEC12706.1, IEC60332.1, IEC60332.2, IEC60332.3
Model Number: CU/XLPE/PVC
Payment & Shipping Terms
Packaging Details: Wooden Package
Delivery Time: 15 working days after payment
Payment Terms: L/C, T/T
Product Description

Medium Voltage Power Cables



Medium voltage power cables are designed for electrical distribution in a range of applications, typically handling voltages between 1 kV and 35 kV. These cables are essential for transmitting electricity from substations to industrial plants, commercial buildings, and other facilities.





Key Features:



Voltage Rating: Medium voltage cables are rated to handle voltages that fall within the medium voltage range, ensuring safety and performance.



Insulation: They typically use materials like cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) for insulation, providing good dielectric strength and resistance to moisture.



Shielding: Many medium voltage cables include a shield to prevent electrical interference and protect against external electromagnetic fields.



Durability: These cables are designed to withstand harsh environmental conditions, including moisture, chemicals, and mechanical stresses.



Conductor Types: Copper and aluminum conductors are commonly used, with copper offering better conductivity and aluminum being lighter and more cost-effective.









Copper Core XLPE Insulated PVC Sheathed Cable Unarmoured 3.6/6kV to 26/35kV 3 Core 0








APPLICATION





  • Power Distribution: Connecting substations to transformers and load centers in various settings.
  • Industrial Plants: Supplying power to motors, machinery, and equipment.
  • Renewable Energy: Used in wind and solar farms for interconnecting systems.



DIMENSIONS







Copper Core XLPE Insulated PVC Sheathed Cable Unarmoured 3.6/6kV to 26/35kV 3 Core 1









PRODUCT PACKING



Multiple packaging methods, suitable for different transport conditions.

Copper Core XLPE Insulated PVC Sheathed Cable Unarmoured 3.6/6kV to 26/35kV 3 Core 2

A:Drum Diamter/meter D:Overall Width/meter A:Drum Diameter/meter Volume of Drum/m^3 Weight of Drum/kg B:Internal Width/meter C:Drum Core/mm
1 0.87 1 0.870 28 0.73 450
1.2 0.87 1.2 1.253 35 0.73 550
1.4 0.87 1.4 1.705 50 0.73 700
1.6 1.03 1.6 2.637 70 0.89 800
1.8 1.13 1.8 3.661 78 0.99 950
2 1.23 2 4.920 100 1.09 950
2.2 1.28 2.2 6.195 125 1.09 1100
2.4 1.65 2.4 9.504 180 1.09 1250
2.6 1.65 2.6 11.154 230 1.49 1400
2.8 1.65 2.8 12.936 305 1.49 1450
3 1.65 3 14.850 332 1.49 1550




CETTIFICATIONS



Our products have obtained TUV Rheinland, IEC, CE, ISO, CE and many other international certifications.



TUV PV1 F Solar Cable Solar Power Wire 1.5kVDC 0.6kV / 1kV AC 3







ABOUT CTT CABLE



  • Shenzhen Chengtiantai Cable Industry Development Co.,Ltd. stablished in 1997. But our founders have been involved in the cable wire manufacturing since 1983, which was known as “Guangdong Dacheng Cable Factory”.





  • CTT is a manufacturer specialized in producing civil and special cable wire. In 2008, our company has been recommended as the Vice Chairman Department of Federation of Shenzhen Industries. C.T.T. Is located in Guangming district, Shenzhen City. The building area of CTT is 100,000 square meters with 60,000 square meters as the floor space.



  • Quality is always the first thing that we pay high attention to. With the effort of the entire C.T.T. team in more than 30 years, CTT has been awarded as “Top Quality Manufacturer of Shenzhen”, “High-tech Enterprise”, “Well-known Brand of Guangdong Province”, “Famous Brand of Guangdong”, “Well-known Brand of Shenzhen” and so on. Meanwhile CTT has registered more than eight patents of our own by continuous investment on R&D.



  • CTT takes customers’ demand as her guidance, high technology as her base, fine quality as her promise and good reputation as her guarantee. We will whole-heatedly provide our customers in both domestic and oversea markets with products of the finest.





Contact us now, Free sample is available

To find out more information about our products and services, send us a message and one of our Salesman will get back to you. We look forward to assisting you.

Mail ID : sinna@cttcable.com

WhatsApp: +86 13534147688



TUV PV1 F Solar Cable Solar Power Wire 1.5kVDC 0.6kV / 1kV AC 4
