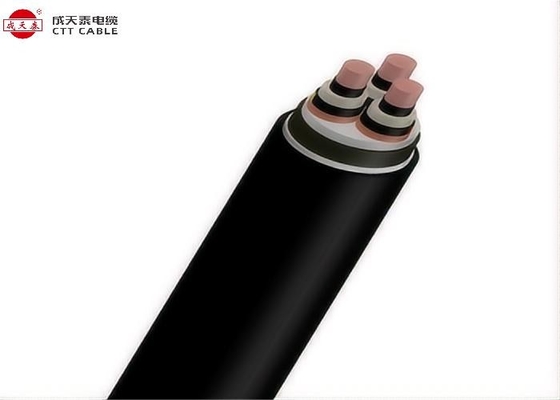

Medium voltage power cables are designed for electrical distribution in a range of applications, typically handling voltages between 1 kV and 35 kV. These cables are essential for transmitting electricity from substations to industrial plants, commercial buildings, and other facilities.
Voltage Rating: Medium voltage cables are rated to handle voltages that fall within the medium voltage range, ensuring safety and performance.

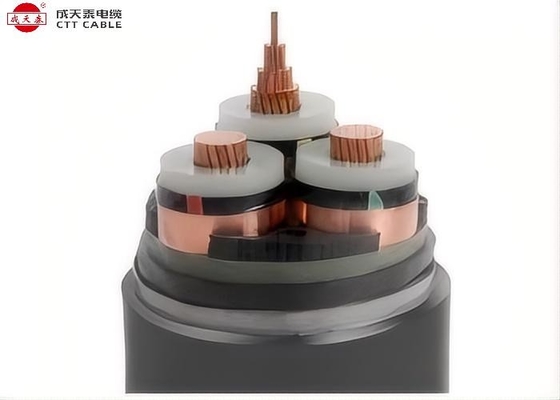

Insulation: They typically use materials like cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) for insulation, providing good dielectric strength and resistance to moisture.
Shielding: Many medium voltage cables include a shield to prevent electrical interference and protect against external electromagnetic fields.
Durability: These cables are designed to withstand harsh environmental conditions, including moisture, chemicals, and mechanical stresses.
Conductor Types: Copper and aluminum conductors are commonly used, with copper offering better conductivity and aluminum being lighter and more cost-effective.
|
cross section (mm2) |
Insulation thickness Avg. (mm) |
Outer diameter approx. (mm) |
weight of cable approx. (kg/km) |
Min. bending radius (mm) |
current rating in air 30℃ (A) |
Current ratings buried 30℃ (A) |
maximum DC resistance at 20℃ (Ω/km) |
Capacitance (μF/km) |
| 3×25 | 2.5 | 36.1 | 1533 | 433 | 103 | 102 | 1.2 | 0.225 |
| 3×35 | 2.5 | 38.6 | 1772 | 463 | 113 | 131 | 0.868 | 0.25 |
| 3×50 | 2.5 | 41.2 | 2045 | 494 | 160 | 156 | 0.641 | 0.278 |
| 3×70 | 2.5 | 45.3 | 2511 | 543 | 200 | 192 | 0.443 | 0.32 |
| 3×95 | 2.5 | 49.1 | 3003 | 590 | 241 | 230 | 0.32 | 0.362 |
| 3×120 | 2.5 | 52.5 | 3464 | 630 | 280 | 260 | 0.253 | 0.397 |
| 3×150 | 2.5 | 56.1 | 4007 | 673 | 317 | 294 | 0.206 | 0.429 |
| 3×185 | 2.5 | 60 | 4635 | 720 | 363 | 333 | 0.164 | 0.471 |
| 3×240 | 2.6 | 65.7 | 5635 | 789 | 424 | 338 | 0.125 | 0.511 |
| 3×300 | 2.8 | 72 | 6794 | 864 | 484 | 416 | 0.1 | 0.526 |
| 3×400 | 3.0 | 79.3 | 8289 | 950 | 597 | 498 | 0.0778 | 0.554 |
Multiple packaging methods, suitable for different transport conditions.
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
| A:Drum Diamter/meter | D:Overall Width/meter | A:Drum Diameter/meter | Volume of Drum/m^3 | Weight of Drum/kg | B:Internal Width/meter | C:Drum Core/mm |
| 1 | 0.87 | 1 | 0.870 | 28 | 0.73 | 450 |
| 1.2 | 0.87 | 1.2 | 1.253 | 35 | 0.73 | 550 |
| 1.4 | 0.87 | 1.4 | 1.705 | 50 | 0.73 | 700 |
| 1.6 | 1.03 | 1.6 | 2.637 | 70 | 0.89 | 800 |
| 1.8 | 1.13 | 1.8 | 3.661 | 78 | 0.99 | 950 |
| 2 | 1.23 | 2 | 4.920 | 100 | 1.09 | 950 |
| 2.2 | 1.28 | 2.2 | 6.195 | 125 | 1.09 | 1100 |
| 2.4 | 1.65 | 2.4 | 9.504 | 180 | 1.09 | 1250 |
| 2.6 | 1.65 | 2.6 | 11.154 | 230 | 1.49 | 1400 |
| 2.8 | 1.65 | 2.8 | 12.936 | 305 | 1.49 | 1450 |
| 3 | 1.65 | 3 | 14.850 | 332 | 1.49 | 1550 |
