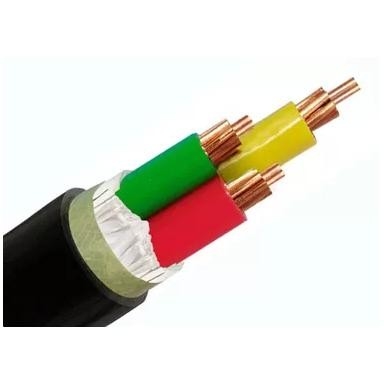

PVC Insulated PVC Sheathed Power Cable 0.6/1kV CU/PVC/PVC IEC60502-1 Conductor Working Temperature 70 Celsius
Dimension& Electrical Data:
| NYY 1x(1.5-630)mm2 0.6/1kV | |||||
| cross section (mm2) | outer diameter approx. (mm) | weight of cable approx (kg/km) | maximum DC resistance at 20℃ (Ω/km) | min bending radius (mm) | current rating in air at 25℃ (A) |
| 1×1.5 | 6 | 54.4 | 12.1 | 122 | 26 |
| 1×2.5 | 6.4 | 67.1 | 7.41 | 130 | 35 |
| 1×4 | 7.3 | 92.3 | 4.61 | 148 | 46 |
| 1×6 | 7.8 | 115.6 | 3.08 | 158 | 58 |
| 1×10 | 8.7 | 162.8 | 1.83 | 184 | 80 |
| 1×16 | 10.2 | 234.5 | 1.15 | 206 | 105 |
| 1×25 | 11.9 | 339.7 | 0.727 | 240 | 140 |
| 1×35 | 13 | 439.7 | 0.524 | 262 | 175 |
| 1×50 | 14.26 | 566.4 | 0.387 | 298 | 215 |
| 1×70 | 15.96 | 772.3 | 0.268 | 338 | 270 |
| 1×95 | 18.2 | 1062.1 | 0.193 | 386 | 335 |
| 1×120 | 19.6 | 1291.2 | 0.153 | 422 | 390 |
| 1×150 | 21.8 | 1604.8 | 0.124 | 462 | 445 |
| 1×185 | 24 | 1966.9 | 0.0991 | 512 | 510 |
| 1×240 | 26.8 | 2541 | 0.0754 | 578 | 620 |
| 1×300 | 29.6 | 3164 | 0.0601 | 634 | 710 |
| 1×400 | 33.4 | 4037.3 | 0.047 | 660 | 850 |
| 1×500 | 37 | 5108.1 | 0.0366 | 744 | 1000 |
| 1×630 | 42.8 | 6457.1 | 0.0283 | 810 | 1100 |
| NYY 2x(1.5-185)mm2 0.6/1kV | |||||
| cross section (mm2) | outer diameter approx.(mm) | weight of cable approx (kg/km) | maximum DC resistance at 20℃ (Ω/km) | min bending radius (mm) | current rating in air at 25℃ (A) |
| 2×1.5 | 10.5 | 135.9 | 12.1 | 158 | 21 |
| 2×2.5 | 11.3 | 166.2 | 7.41 | 170 | 29 |
| 2×4 | 13.1 | 228.9 | 4.61 | 195 | 38 |
| 2×6 | 14.1 | 283.4 | 3.08 | 210 | 48 |
| 2×10 | 15.9 | 392.8 | 1.83 | 251 | 66 |
| 2×16 | 18.9 | 565.9 | 1.15 | 282 | 90 |
| 2×25 | 22.3 | 816 | 0.727 | 339 | 120 |
| 2×35 | 24.5 | 1045.1 | 0.524 | 288 | 150 |
| 2×50 | 20.7 | 1146.8 | 0.387 | 330 | 180 |
| 2×70 | 22.9 | 1559 | 0.268 | 365 | 230 |
| 2×95 | 26.1 | 2141.6 | 0.193 | 405 | 275 |
| 2×120 | 28.3 | 2615 | 0.153 | 450 | 320 |
| 2×150 | 31.3 | 3239.5 | 0.124 | 495 | 355 |
| 2×185 | 34.5 | 3975.5 | 0.0991 | 552 | 430 |
| NYY 3x(1.5-300)mm2 0.6/1kV | |||||
| cross section (mm2) | outer diameter approx. (mm) | weight of cable approx (kg/km) | maximum DC resistance at 20℃ (Ω/km) | min bending radius (mm) | current rating in air at 25℃ (A) |
| 3×1.5 | 11 | 160.8 | 12.1 | 165 | 18 |
| 3×2.5 | 11.8 | 200.5 | 7.41 | 179 | 25 |
| 3×4 | 13.8 | 282.6 | 4.61 | 207 | 34 |
| 3×6 | 14.9 | 356.3 | 3.08 | 224 | 44 |
| 3×10 | 16.9 | 506.5 | 1.83 | 264 | 60 |
| 3×16 | 20.3 | 739 | 1.15 | 299 | 80 |
| 3×25 | 23.9 | 1079.8 | 0.727 | 356 | 105 |
| 3×35 | 26.3 | 1398.7 | 0.524 | 392 | 130 |
| 3×50 | 23.7 | 1645.6 | 0.387 | 396 | 160 |
| 3×70 | 27.1 | 2284.7 | 0.268 | 447 | 200 |
| 3×95 | 30.9 | 3147.7 | 0.193 | 507 | 245 |
| 3×120 | 33.5 | 3846.9 | 0.153 | 551 | 285 |
| 3×150 | 37.2 | 4772.6 | 0.124 | 603 | 325 |
| 3×185 | 41.1 | 5861.4 | 0.0991 | 684 | 370 |
| 3×240 | 46.1 | 7594.9 | 0.0754 | 776 | 435 |
| 3×300 | 51.2 | 9479.9 | 0.0601 | 842 | 500 |
| NYY 4x(1.5-300)mm2 0.6/1kV | |||||
| cross section (mm2) | outer diameter approx. (mm) | weight of cable approx (kg/km) | maximum DC resistance at 20℃ (Ω/km) | min bending radius (mm) | current rating in air at 25℃ (A) |
| 4×1.5 | 11.8 | 191.9 | 12.1 | 178 | 18 |
| 4×2.5 | 12.8 | 243.7 | 7.41 | 200 | 25 |
| 4×4 | 15 | 347.5 | 4.61 | 224 | 34 |
| 4×6 | 16.2 | 443.5 | 3.08 | 242 | 44 |
| 4×10 | 19.6 | 636.9 | 1.83 | 290 | 60 |
| 4×16 | 22.2 | 937.9 | 1.15 | 327 | 80 |
| 4×25 | 26.3 | 1379.8 | 0.727 | 390 | 105 |
| 4×35 | 29 | 1796.6 | 0.524 | 431 | 130 |
| 4×50 | 27.2 | 2177.8 | 0.387 | 443 | 160 |
| 4×70 | 31 | 3020.5 | 0.268 | 495 | 200 |
| 4×95 | 35.4 | 4162.3 | 0.193 | 572 | 245 |
| 4×120 | 38.6 | 5107.8 | 0.153 | 617 | 285 |
| 4×150 | 42.8 | 6336.6 | 0.124 | 687 | 325 |
| 4×185 | 47.3 | 7787.2 | 0.0991 | 758 | 370 |
| 4×240 | 53.3 | 10101.5 | 0.0754 | 836 | 435 |
| 4×300 | 59.1 | 12602.3 | 0.0601 | 951 | 500 |
Drum Data:
Certificates:
Tips:
When sending an inquiry about cables or building wires,please address the specification or parameters of cables shown as follows:
Cable name: PVC Insulated PVC Sheathed Power Cable 0.6/1kV CU/PVC/PVC IEC60502-1 Conductor Working Temperature 70 Celsius.
Voltage: 0.6/1 KV
Cross section: for example: 3×10mm² (It means there are three conductors inside this cable and the size of each conductor is 10 square millimeters.)
Length: for example: 1000 meters
Harbor& postcode: for example: Yantian port,Shenzhen,China. 518000
It will save you a lot of time and will also help us to prepare you an accurate quotation very quickly.Thanks!
