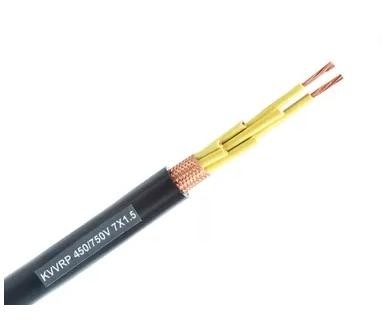

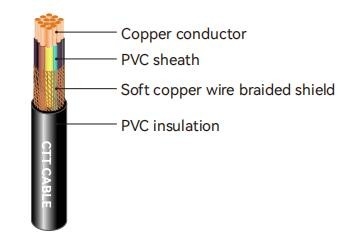

Flexible Control Cable PVC Insulated& Sheathed Braid Shield Screen 450 / 750V CU / PVC / braided shield / PVC
Dimension& Electrical Data:
| No.of Cores Cross-sec. (mm²) |
Reference Outer Diameter (mm) |
Reference Weight (kg/km) |
Maximum DC Resistance at20℃ (Ω/km) |
Minimum Insulation Resistance at 70℃ (MΩ×km) |
| 2×0.75 | 8.4 | 104.08 | 26 | 0.011 |
| 2×1 | 8.7 | 106.4 | 19.5 | 0.01 |
| 2×1.5 | 9.6 | 131.1 | 13.3 | 0.01 |
| 2×2.5 | 11.02 | 173.7 | 7.98 | 0.009 |
| 3×0.75 | 8.78 | 112.6 | 26 | 0.011 |
| 3×1 | 9.11 | 124.8 | 19.5 | 0.01 |
| 3×1.5 | 10.08 | 156.1 | 13.3 | 0.01 |
| 3×2.5 | 11.61 | 210.3 | 7.98 | 0.009 |
| 4×0.75 | 9.4 | 132.3 | 26 | 0.011 |
| 4×1 | 9.77 | 147.5 | 19.5 | 0.01 |
| 4×1.5 | 10.86 | 186.7 | 13.3 | 0.01 |
| 4×2.5 | 12.57 | 254.7 | 7.98 | 0.009 |
| 5×0.75 | 10.07 | 153.1 | 26 | 0.011 |
| 5×1 | 10.48 | 171.9 | 19.5 | 0.01 |
| 5×1.5 | 11.69 | 219 | 13.3 | 0.01 |
| 5×2.5 | 14.21 | 320.8 | 7.98 | 0.009 |
| 6×0.75 | 10.79 | 175.6 | 26 | 0.011 |
| 6×1 | 11.24 | 197.4 | 19.5 | 0.01 |
| 6×1.5 | 12.59 | 253.6 | 13.3 | 0.01 |
| 6×2.5 | 15.52 | 389.3 | 7.98 | 0.009 |
| No.of Cores Cross section. (mm²) |
Reference Outer Diameter (mm) |
Reference Weight (kg/km) |
Maximum DC Resistance at 20℃ (Ω/km) |
Minimum Insulation Resistance at70℃ (MΩ×km) |
| 7×0.75 | 10.79 | 178.7 | 26 | 0.011 |
| 7×1 | 11.24 | 202 | 19.5 | 0.01 |
| 7×1.5 | 12.59 | 260.4 | 13.3 | 0.01 |
| 7×2.5 | 15.52 | 399.6 | 7.98 | 0.009 |
| 8×0.75 | 11.87 | 205.7 | 26 | 0.011 |
| 8×1 | 12.38 | 232.6 | 19.5 | 0.01 |
| 8×1.5 | 14.74 | 336.2 | 13.3 | 0.01 |
| 8×2.5 | 17.19 | 461.7 | 7.98 | 0.009 |
| 9×0.75 | 12.7 | 226.8 | 26 | 0.011 |
| 9×1 | 13.87 | 275.6 | 19.5 | 0.01 |
| 9×1.5 | 15.78 | 371.4 | 13.3 | 0.01 |
| 9×2.5 | 18.48 | 511.4 | 7.98 | 0.009 |
| 10×0.75 | 13.78 | 262.8 | 26 | 0.011 |
| 10×1 | 14.58 | 312.6 | 19.5 | 0.01 |
| 10×1.5 | 16.38 | 400.7 | 13.3 | 0.01 |
| 10×2.5 | 19.22 | 554.2 | 7.98 | 0.009 |
| 11×0.75 | 13.78 | 275.5 | 26 | 0.011 |
| 11×1 | 14.58 | 328 | 19.5 | 0.01 |
| 11×1.5 | 16.38 | 422.4 | 13.3 | 0.01 |
| 11×2.5 | 19.22 | 587.3 | 7.98 | 0.009 |
| No.of Cores Cross section (mm²) | Reference Outer Diameter (mm) |
Reference Weight (kg/km) |
MaximumDC Resistance at20℃ (Ω/km) |
Minimum Insulation Resistance at70℃ (MΩ×km) |
| 12×0.75 | 14.16 | 292.7 | 26 | 0.011 |
| 12×1 | 14.99 | 348.6 | 19.5 | 0.01 |
| 12×1.5 | 16.86 | 450.3 | 13.3 | 0.01 |
| 12×2.5 | 20.21 | 646.3 | 7.98 | 0.009 |
| 13×0.75 | 14.96 | 328.4 | 26 | 0.011 |
| 13×1 | 15.62 | 372.2 | 19.5 | 0.01 |
| 13×1.5 | 17.61 | 481.8 | 13.3 | 0.01 |
| 13×2.5 | 21.14 | 692.2 | 7.98 | 0.009 |
| 14×0.75 | 14.96 | 341.2 | 26 | 0.011 |
| 14×1 | 15.62 | 387.5 | 19.5 | 0.01 |
| 14×1.5 | 17.61 | 503.5 | 13.3 | 0.01 |
| 14×2.5 | 21.14 | 725.4 | 7.98 | 0.009 |
| 15×0.75 | 15.65 | 362.7 | 26 | 0.011 |
| 15×1 | 16.36 | 412.4 | 19.5 | 0.01 |
| 15×1.5 | 18.47 | 536.4 | 13.3 | 0.01 |
| 15×2.5 | 22.21 | 773.4 | 7.98 | 0.009 |
| 16×0.75 | 15.65 | 375.4 | 26 | 0.011 |
| 16×1 | 16.36 | 427.8 | 19.5 | 0.01 |
| 16×1.5 | 18.47 | 558.1 | 13.3 | 0.01 |
| 16×2.5 | 22.21 | 806.5 | 7.98 | 0.009 |
| 17×0.75 | 16.37 | 397.5 | 26 | 0.011 |
| 17×1 | 17.12 | 453 | 19.5 | 0.01 |
| 17×1.5 | 19.37 | 591.3 | 13.3 | 0.01 |
| 17×2.5 | 25.02 | 880.22 | 7.98 | 0.009 |
| 18×0.75 | 16.37 | 410.2 | 26 | 0.011 |
| 18×1 | 17.12 | 468.3 | 19.5 | 0.01 |
| 18×1.5 | 19.37 | 613.1 | 13.3 | 0.01 |
| 18×2.5 | 23.32 | 888.1 | 7.98 | 0.009 |
| 19×0.75 | 16.37 | 422.9 | 26 | 0.011 |
| 19×1 | 17.12 | 483.8 | 19.5 | 0.01 |
| 19×1.5 | 19.37 | 634.9 | 13.3 | 0.01 |
| 19×2.5 | 23.32 | 921.4 | 7.98 | 0.009 |
| 20×0.75 | 17.16 | 445.7 | 26 | 0.011 |
| 20×1 | 17.96 | 509.9 | 19.5 | 0.01 |
| 20×1.5 | 20.76 | 688.1 | 13.3 | 0.01 |
| 20×2.5 | 24.54 | 971.3 | 7.98 | 0.009 |
| 21×0.75 | 17.16 | 458.5 | 26 | 0.011 |
| 21×1 | 17.96 | 525.5 | 19.5 | 0.01 |
| 21×1.5 | 20.76 | 709.9 | 13.3 | 0.01 |
| 21×2.5 | 24.54 | 1004.5 | 7.98 | 0.009 |
| 22×0.75 | 17.97 | 481.4 | 26 | 0.011 |
| 22×1 | 18.82 | 551.7 | 19.5 | 0.01 |
| 22×1.5 | 21.77 | 745.4 | 13.3 | 0.01 |
| 22×2.5 | 26 | 1084.8 | 7.98 | 0.009 |
| 23×0.75 | 17.97 | 494.2 | 26 | 0.011 |
| 23×1 | 18.82 | 567 | 19.5 | 0.01 |
| 23×1.5 | 21.77 | 767.1 | 13.3 | 0.01 |
| 23×2.5 | 26 | 1117.9 | 7.98 | 0.009 |
| 24×0.75 | 18.76 | 517.1 | 26 | 0.011 |
| 24×1 | 20.06 | 611.3 | 19.5 | 0.01 |
| 24×1.5 | 22.76 | 802.5 | 13.3 | 0.01 |
| 24×2.5 | 27.22 | 1169.5 | 7.98 | 0.009 |
| 25×0.75 | 18.76 | 529.8 | 26 | 0.011 |
| 25×1 | 20.06 | 626.7 | 19.5 | 0.01 |
| 25×1.5 | 22.76 | 824.3 | 13.3 | 0.01 |
| 25×2.5 | 27.22 | 1202.6 | 7.98 | 0.009 |
| 26×0.75 | 18.76 | 542.5 | 26 | 0.011 |
| 26×1 | 20.06 | 642.1 | 19.5 | 0.01 |
| 26×1.5 | 22.76 | 846 | 13.3 | 0.01 |
| 26×2.5 | 27.22 | 1235.8 | 7.98 | 0.009 |
| 27×0.75 | 19.12 | 559.7 | 26 | 0.011 |
| 27×1 | 20.44 | 662.6 | 19.5 | 0.01 |
| 27×1.5 | 23.21 | 874.1 | 13.3 | 0.01 |
| 27×2.5 | 27.78 | 1277.3 | 7.98 | 0.009 |
| 28×0.75 | 17.35 | 549.8 | 26 | 0.011 |
| 28×1 | 18.16 | 635.6 | 19.5 | 0.01 |
| 28×1.5 | 21 | 865.4 | 13.3 | 0.01 |
| 28×2.5 | 24.84 | 1240.9 | 7.98 | 0.009 |
| 29×0.75 | 19.74 | 593.2 | 26 | 0.011 |
| 29×1 | 21.1 | 702.5 | 19.5 | 0.01 |
| 29×1.5 | 23.99 | 928.1 | 13.3 | 0.01 |
| 29×2.5 | 28.74 | 1358.2 | 7.98 | 0.009 |
| 30×0.75 | 19.74 | 605.8 | 26 | 0.011 |
| 30×1 | 21.1 | 718 | 19.5 | 0.01 |
| 30×1.5 | 23.99 | 949.9 | 13.3 | 0.01 |
| 30×2.5 | 28.74 | 1391.4 | 7.98 | 0.009 |
| 31×0.75 | 20.83 | 646.3 | 26 | 0.011 |
| 31×1 | 21.84 | 743.5 | 19.5 | 0.01 |
| 31×1.5 | 24.85 | 983.6 | 13.3 | 0.01 |
| 31×2.5 | 30.41 | 1481.6 | 7.98 | 0.009 |
| 32×0.75 | 20.83 | 659 | 26 | 0.011 |
| 32×1 | 21.84 | 758.9 | 19.5 | 0.01 |
| 32×1.5 | 24.85 | 1005.3 | 13.3 | 0.01 |
| 32×2.5 | 30.41 | 1514.9 | 7.98 | 0.009 |
| 33×0.75 | 20.83 | 671.7 | 26 | 0.011 |
| 33×1 | 21.84 | 774.3 | 19.5 | 0.01 |
| 33×1.5 | 24.85 | 1027.1 | 13.3 | 0.01 |
| 33×2.5 | 30.41 | 1548 | 7.98 | 0.009 |
| 34×0.75 | 21.55 | 694.2 | 26 | 0.011 |
| 34×1 | 22.6 | 800.2 | 19.5 | 0.01 |
| 34×1.5 | 25.95 | 1090.9 | 13.3 | 0.01 |
| 34×2.5 | 31.52 | 1599.3 | 7.98 | 0.009 |
| 35×0.75 | 21.55 | 707 | 26 | 0.011 |
| 35×1 | 22.6 | 815.5 | 19.5 | 0.01 |
| 35×1.5 | 25.95 | 1112.5 | 13.3 | 0.01 |
| 35×2.5 | 31.52 | 1632.6 | 7.98 | 0.009 |
| 36×0.75 | 21.55 | 719.6 | 26 | 0.011 |
| 36×1 | 22.6 | 831 | 19.5 | 0.01 |
| 36×1.5 | 25.95 | 1134.3 | 13.3 | 0.01 |
| 36×2.5 | 31.52 | 1665.7 | 7.98 | 0.009 |
Drum Data:
Certificates:
Tips:
When sending an inquiry about cables or building wires,please address the specification or parameters of cables shown as follows:
Cable name: Copper conductor PVC insulated and sheathed braid shield flexible control cable
Voltage: 450/ 750V
Cross section: for example: 3×2.5 mm² (It means there are three conductors inside this cable and the size of each conductor is 2.5 square millimeters.)
Length: for example: 1000 meters
Harbor& postcode: for example: Yantian port,Shenzhen,China. 518000
It will save you a lot of time and will also help us to prepare you an accurate quotation very quickly.Thanks!
