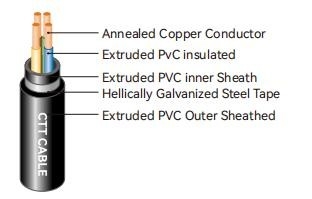

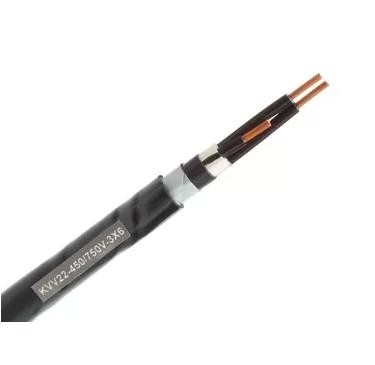

Control Cables Steel Tape Armored 450V / 750V CU / PVC / PVC / STA / PVC KVV22 / NYBY
Dimension & Electrical Data:
| No.ofCores Cross-sec.(mm²) |
Reference Outer Diameter (mm) | Reference Weight (kg/km) | Maximum DC Resistance at20℃ (Ω/km) |
Minimum Insulation Resistance at70℃ (MΩ×km) |
| 4×2.5 | 14.51 | 353.5 | 7.41 | 0.01 |
| 4×4 | 15.72 | 442.8 | 4.61 | 0.0085 |
| 4×6 | 16.93 | 547.6 | 3.08 | 0.007 |
| 4×10 | 21.32 | 858.7 | 1.83 | 0.0065 |
| 5×2.5 | 15.45 | 406.6 | 7.41 | 0.01 |
| 5×4 | 16.8 | 515.2 | 4.61 | 0.0085 |
| 5×6 | 18.15 | 642.7 | 3.08 | 0.007 |
| 5×10 | 23 | 1017.9 | 1.83 | 0.0065 |
| 7×1 | 12.85 | 278.5 | 18.1 | 0.011 |
| 7×1.5 | 14.74 | 365.4 | 12.1 | 0.011 |
| 7×2.5 | 16.45 | 476.1 | 7.41 | 0.01 |
| 7×4 | 17.95 | 614.2 | 4.61 | 0.0085 |
| 7×6 | 19.45 | 778.3 | 3.08 | 0.007 |
| 7×10 | 24.8 | 1242.1 | 1.83 | 0.0065 |
| 8×1 | 14.51 | 334.7 | 18.1 | 0.011 |
| 8×1.5 | 15.99 | 414.6 | 12.1 | 0.011 |
| 8×2.5 | 17.96 | 543.5 | 7.41 | 0.01 |
| 8×4 | 19.68 | 703.4 | 4.61 | 0.0085 |
| 8×6 | 21.81 | 913.2 | 3.08 | 0.007 |
| 8×10 | 28.1 | 1468.5 | 1.83 | 0.0065 |
| 10×1 | 15.8 | 389 | 18.1 | 0.011 |
| 10×1.5 | 17.52 | 486.2 | 12.1 | 0.011 |
| 10×2.5 | 20.2 | 661.7 | 7.41 | 0.01 |
| 10×4 | 22.2 | 859.9 | 4.61 | 0.0085 |
| 10×6 | 24.2 | 1095.9 | 3.08 | 0.007 |
| 10×10 | 32 | 1815.6 | 1.83 | 0.0065 |
| 12×1 | 16.18 | 428.7 | 18.1 | 0.011 |
| 12×1.5 | 17.8 | 607.8 | 12.1 | 0.011 |
| 12×2.5 | 21 | 834.4 | 7.41 | 0.01 |
| 12×4 | 22.4 | 1064.3 | 4.61 | 0.0085 |
| 12×6 | 24.9 | 1388.6 | 3.08 | 0.007 |
| 14×1 | 16.76 | 467 | 18.1 | 0.011 |
| 14×1.5 | 18.66 | 592.9 | 12.1 | 0.011 |
| 14×2.5 | 21.57 | 818.9 | 7.41 | 0.01 |
| 14×4 | 23.78 | 1083.8 | 4.61 | 0.0085 |
| 14×6 | 25.98 | 1401.3 | 3.08 | 0.007 |
| No.ofCores Cross-sec.(mm²) | Reference Outer Diameter (mm) | Reference Weight (kg/km) | Maximum DC Resistance at20℃ (Ω/km) |
Minimum Insulation Resistance at70℃ (MΩ×km) |
| 16×1 | 17.45 | 509.8 | 18.1 | 0.011 |
| 16×1.5 | 19.47 | 650.8 | 12.1 | 0.011 |
| 16×2.5 | 22.55 | 903.3 | 7.41 | 0.01 |
| 19×1 | 18.15 | 568 | 18.1 | 0.011 |
| 19×1.5 | 20.7 | 749.2 | 12.1 | 0.011 |
| 19×2.5 | 23.55 | 1020.7 | 7.41 | 0.01 |
| 24×1 | 20.9 | 706.1 | 18.1 | 0.011 |
| 24×1.5 | 23.48 | 910.9 | 12.1 | 0.011 |
| 24×2.5 | 27.5 | 1284.5 | 7.41 | 0.01 |
| 27×1 | 21.25 | 757.9 | 18.1 | 0.011 |
| 27×1.5 | 23.9 | 983 | 12.1 | 0.011 |
| 27×2.5 | 28 | 1392.4 | 7.41 | 0.01 |
| 30×1 | 21.86 | 814.9 | 18.1 | 0.011 |
| 30×1.5 | 24.62 | 1061.1 | 12.1 | 0.011 |
| 30×2.5 | 28.87 | 1508.3 | 7.41 | 0.01 |
| 37×1 | 23.25 | 947.2 | 18.1 | 0.011 |
| 37×1.5 | 26.26 | 1242.8 | 12.1 | 0.011 |
| 37×2.5 | 31.45 | 1819.9 | 7.41 | 0.01 |
| 44×1 | 25.6 | 1098.3 | 18.1 | 0.011 |
| 44×1.5 | 30.24 | 1525.3 | 12.1 | 0.011 |
| 44×2.5 | 35.2 | 2154.3 | 7.41 | 0.01 |
| 48×1 | 25.95 | 1165 | 18.1 | 0.011 |
| 48×1.5 | 30.66 | 1619.9 | 12.1 | 0.011 |
| 48×2.5 | 36.9 | 2639.4 | 7.41 | 0.01 |
| 52×1 | 26.56 | 1236.9 | 18.1 | 0.011 |
| 52×1.5 | 31.38 | 1721.1 | 12.1 | 0.011 |
| 52×2.5 | 37.77 | 2798.6 | 7.41 | 0.01 |
| 61×1 | 33.02 | 1949.5 | 18.1 | 0.011 |
| 61×1.5 | 39.75 | 3157.9 | 12.1 | 0.011 |
Drum Data:
Certificates:
Tips:
When sending an inquiry about cables or building wires,please address the specification or parameters of cables shown as follows:
Cable name: Control Cables Steel Tape Armored 450V / 750V CU / PVC / PVC / STA / PVC KVV22 / NYBY
Voltage: 450/ 750V
Cross section: for example: 4×2.5 mm² (It means there are 4 conductors inside this cable and the size of each conductor is 2.5 square millimeters.)
Length: for example: 2000 meters
Harbor& postcode: for example: Yantian port,Shenzhen,China. 518000
It will save you a lot of time and will also help us to prepare you an accurate quotation very quickly.Thanks!
