Feature:
| Performance Category | Cat 6 |
| Jacket | PVC |
| Cable Configuration | FTP |
| Conductor | Solid bare copper |
| Insulation | High density Polyethylene (HDPE) |

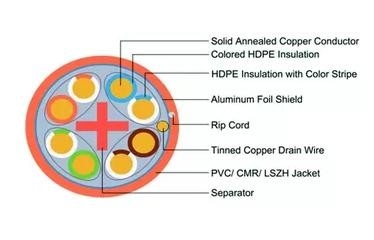

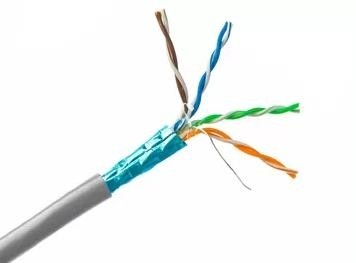

CABLE CONSTRUCTIONS:
| Twisting | 2 cores per pair |
| Number of pairs | 4 pairs |
| Conductor | copper |
| Insulation | High density Polyethylene (HDPE) |
| Separator | cross filler |
| Screen | Al-foil |
| Rip cord | Tinned copper |
| Sheath | PVC |
Dimensions:
| Cable Length | 1000 ft / 305 meters |
| Cable Weight | 15~16 kg |
| Diameter Over Jacket | 7.4 mm |
| Jacket Thickness | 0.55 mm |
| Conductor Diameter(AWG) | 23 |
| Conductor Diameter | 0.575 mm |
| Insulation Diameter | 1.1 mm |
Usage:
| Operating Temperature | 0 to 60 ℃ |
| Installation Temperature | - 20 to 60 ℃ |
| Storage Temperature | - 20to 80 ℃ |
| Bending Radius | 4 x Cable Diameter |
Electrical Characteristics:
| DC Resistance , maximum at 20˚C | 9.38 ohms/100 m |
| DC Resistance Unbalance, maximum | 5% |
| Mutual Capacitance | 5.6 nF/100 m @ 1 kHz |
| Characteristic Impedance | 100 ± 15 ohms (Frequency: 1-200 MHz) |
| Propagation delay at100 MHz (ns/100m) | <536 |
| Delay Skew | ≤45 ns |
| Nominal Velocity of Propagation (NVP) | 69% |
| Operating Frequency, maximum | 250 MHz |
| Safety Voltage Rating | 80 V |
Electrical characteristics(at 20℃):
|
Requency
|
Attenuation (Max) | PS NEXT (Min) | NEXT (Min) |
PS ELFEXT (Min) | ELFEXT (Min) | TCL (Min) |
EL TCL (Min) |
RL (Min) |
| MHz | dB | dB | dB | dB/100m | dB/100m | dB | dB | dB |
| 4 | 3.8 | 63.3 | 66.3 | 53 | 56 | 44 | 23 | 23 |
| 8 | 5.3 | 58.8 | 61.8 | 46.9 | 49.9 | 41 | 16.9 | 24.5 |
| 10 | 6 | 57.3 | 60.3 | 45 | 48 | 40 | 15 | 25 |
| 16 | 7.6 | 54.2 | 57.2 | 40.9 | 43.9 | 38 | 10.9 | 25 |
| 20 | 8.5 | 52.8 | 55.8 | 39 | 42 | 37 | 9 | 25 |
| 25 | 9.5 | 51.3 | 54.3 | 37 | 40 | 36 | 7 | 24.3 |
| 31.25 | 10.7 | 49.9 | 52.9 | 35.1 | 38.1 | 35.1 | / | 23.6 |
| 62.5 | 15.4 | 45.4 | 48.4 | 29.1 | 32.1 | 32 | / | 21.5 |
| 100 | 19.8 | 42.3 | 45.3 | 25 | 28 | 30 | / | 20.1 |
| 200 | 29 | 37.8 | 40.8 | 19 | 22 | 27 | / | 18 |
| 250 | 32.8 | 36.3 | 39.3 | 17 | 20 | 26 | / | 17.3 |
