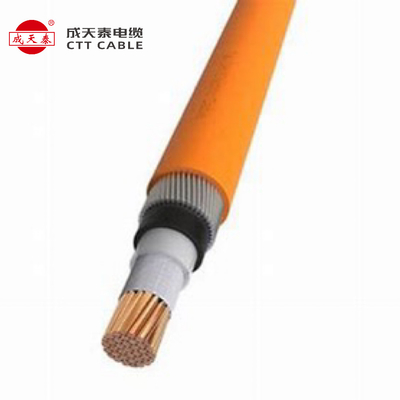

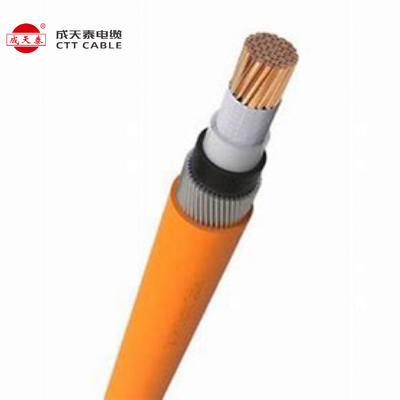

The orange fireproof cable is a type of cable designed for use in high-risk environments where fire resistance is crucial. These cables typically feature a flame-retardant outer sheath that is often orange in color for easy identification. They are commonly used in emergency lighting systems, fire alarm systems, and other critical applications that require both fire resistance and reliable performance in the event of a fire. The inner conductors are usually made of copper or aluminum, with additional fire-resistant insulation materials to prevent the cable from burning or degrading under extreme heat.
Color: Orange (for easy identification and to meet fire safety codes)
Flame-Retardant: Designed to resist combustion, ensuring continued operation in the event of a fire
Applications: Emergency lighting, fire alarm systems, security systems, and other safety-critical installations
Temperature Resistance: Can withstand high temperatures (often up to 90°C or more, depending on the specification)
Commercial Buildings: Used in fire alarm systems, emergency lighting, and power distribution.
Transportation: Essential in trains, airplanes, and ships to ensure passenger safety.
Industrial Settings: Protect equipment and personnel in factories and plants.
| No | Test item | Property | |||
| 1 | Construction | Listed to the tables | |||
| 2 | Conductor resistance | Listed to the tables | |||
| 3 | Voltage test | A.C 3.5kV 5min | No breaken | ||
| 4 | Mechanical properties before aging | Tensile strength | Insulation | Min.12.5N/mm² | |
| Sheath | Min.12.5N/mm² | ||||
| Elongation at break | Insulation | Min.150% | |||
| Sheath | Min.150% | ||||
| Mechanical properties after aging | Tensile strength | Insulation | 100°C±2°C 7days | ||
| Min.±12.5N/mm² | |||||
| Sheath | 100°C±2°C 7days | ||||
| Min.±12.5N/mm² | |||||
| Varying valve of tensile strength | Insulation | 100°C±2°C 7days | |||
| Min.±25% | |||||
| Sheath | 100°C±2°C 7days | ||||
| Min.±25% | |||||
| Elongation at break | Insulation | 100°C±2°C 7days | |||
| Min.±150% | |||||
| Sheath | 100°C±2°C 7days | ||||
| Min.±150% | |||||
| Varying valve of tensile strength | Insulation | 100°C±2°C 7days | |||
| Min.±25% | |||||
| Sheath | 100°C±2°C 7days | ||||
| Min.±25% | |||||
| 5 | Flame-retardant property | Comply with GB12666.5-90(CB) and IEC332-3(CB) | |||
| 6 | Constant of insulation resistivity | Min at 20°C | 36.7 | ||
| Ki MΩ.km | Min at 70°C | 0.037 | |||
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
| A:Drum Diamter/meter | D:Overall Width/meter | A:Drum Diameter/meter | Volume of Drum/m^3 | Weight of Drum/kg | B:Internal Width/meter | C:Drum Core/mm |
| 1 | 0.87 | 1 | 0.870 | 28 | 0.73 | 450 |
| 1.2 | 0.87 | 1.2 | 1.253 | 35 | 0.73 | 550 |
| 1.4 | 0.87 | 1.4 | 1.705 | 50 | 0.73 | 700 |
| 1.6 | 1.03 | 1.6 | 2.637 | 70 | 0.89 | 800 |
| 1.8 | 1.13 | 1.8 | 3.661 | 78 | 0.99 | 950 |
| 2 | 1.23 | 2 | 4.920 | 100 | 1.09 | 950 |
| 2.2 | 1.28 | 2.2 | 6.195 | 125 | 1.09 | 1100 |
| 2.4 | 1.65 | 2.4 | 9.504 | 180 | 1.09 | 1250 |
| 2.6 | 1.65 | 2.6 | 11.154 | 230 | 1.49 | 1400 |
| 2.8 | 1.65 | 2.8 | 12.936 | 305 | 1.49 | 1450 |
| 3 | 1.65 | 3 | 14.850 | 332 | 1.49 | 1550 |
CETTIFICATIONS
Our products have obtained TUV Rheinland, IEC, CE, ISO, CE and many other international certifications.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally 5-15 days , according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Usually 30% T/T deposit , balance before shippment.
Q:Can we visit the factory?
A:We welcome you to visit the factory anytime.
When inquiring about cables or wires, please provide the following specifications or parameters for the cable (example)
1, Cable Type: CU / XLPE / SWA / PVC (mean Copper conductor, xlpe insulation, steel wire armouring, PVC sheathing)
2, Voltage Rating: 0.6/1 KV
3, Cross-Section: 3×120mm² (mean the cable contains three conductors, each with a cross-sectional area of 120 square millimeters.)
4, Length: 1000 meters
5, Port & Postal Code: Yantian Port, Shenzhen, China, 518000
6, terms of trade: FOB shenzhen
