Applications:
• Secondary voltage resistance welding leads
• Power supply applications not exceeding 600 Volt AC
Construction:
Conductor: fully annealed stranded bare copper
Jacket: rubber sheathed black
Temperature range: -40°C to +90°C
Current Rating:
The maximum current ratings of flexible welding cables for different duty cycles and based on an ambient air temperature of 25℃ and a maximum conductor temperature of 90 ℃. The percentage duly cycles for various processes and applications are as follows:
Volatage Drop:
When total cable lengths in excess of 15 mtr., are involved, it may be necessary to use cables of large cross section to ensure that the voltage drop is not excessive and welding currents are maintained at adequate levels.

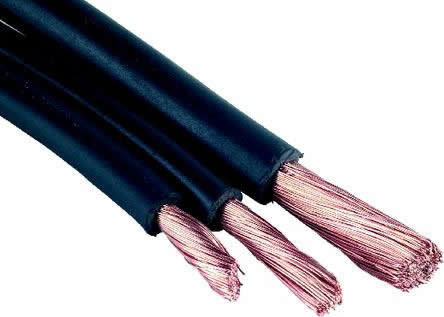

60245 IEC 82 heavy duty polychloroprene (PCP) sheathed welding cable
| No.cores x cross-sec. | No.wires x single wire Ø | Sheat Nominal value | Outer Ø |
Approx. Weight |
Resistance | |
| min. | max. | |||||
| (mm2) | mm | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) |
| 1 x 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 153.51 | 1.91 |
| 1 x 16 | 513/0.20 | 2 | 8.8 | 11 | 230.44 | 1.21 |
| 1 x 25 | 798/0.20 | 2 | 10.1 | 12.7 | 331.15 | 0.78 |
| 1 x 35 | 1121/0.20 | 2 | 11.4 | 14.2 | 439.89 | 0.554 |
| 1 x 50 | 1596/0.20 | 2.2 | 13.2 | 16.5 | 610.55 | 0.386 |
| 1 x 70 | 2214/0.20 | 2.4 | 15.3 | 19.2 | 817.52 | 0.272 |
| 1 x 95 | 2997/0.20 | 2.6 | 17.1 | 21.4 | 1102.97 | 0.206 |
| 1 x 120 | 1702/0.30 | 2.8 | 19 | 24 | 1392.55 | 0.161 |
| 1 x 150 | 2135/0.30 | 3 | 21 | 27 | 1698.72 | 0.129 |
| 1 x 185 | 1443/0.40 | 3.2 | 22 | 29 | 2020.74 | 1.106 |
 |
|
| CUSTOMER SERVICES: | |
|
We manufactures a comprehensive array of wires and cables to meet diverse market needs. |
Shenzhen chengtiantai cable operates certified management systems compliant with: ISO 9001:2008 / ISO 14001:200]4 / OHSAS 18001:2007 |
Because we continuously improve our products, CTT Cable reserves the right to change specifications and availability without prior notice.
