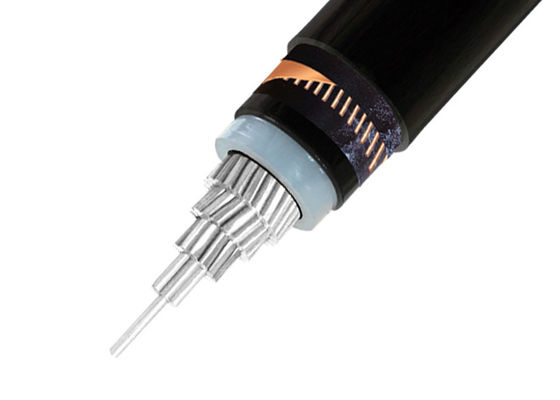

YJLV22 Armoured Aluminium Cable
0.6/1kV · 1×25 — 4×400 mm²
YJLV22 combines the cost advantage of aluminium conductors with double steel-tape armour, making it ideal for long-distance underground feeders, renewable energy collection circuits and utility distribution projects where mechanical protection is required.
Specifications
Engineering data sheet
| Standard | GB/T 12706, IEC 60502-1 |
| Rated Voltage | 0.6/1 kV |
| Conductor | Class 2 stranded aluminium |
| Insulation | XLPE |
| Armour | Double steel tape (STA) |
| Sheath | PVC |
| Cores | 1, 2, 3, 4 |
| Cross-section | 25 — 400 mm² |
Applications
Where it's used
- Underground distribution
- Solar / wind farm feeders
- Rural electrification
- Utility networks
