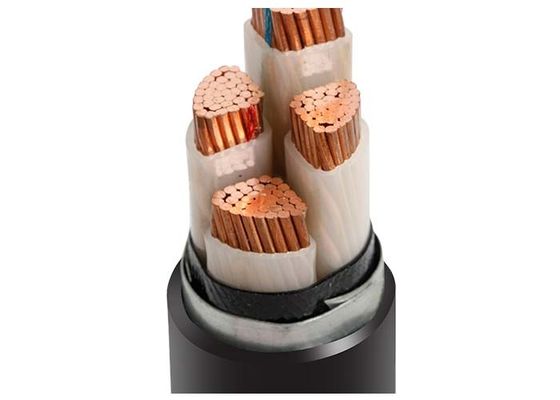

YJV22 Steel Tape Armoured Cable
0.6/1kV · 2×1.5 — 5×300 mm²
YJV22 armoured power cable provides excellent mechanical protection and moisture resistance for buried ducts, outdoor trenches and industrial environments. Copper conductors with XLPE insulation ensure low losses and long service life.
Specifications
Engineering data sheet
| Standard | GB/T 12706, IEC 60502-1 |
| Rated Voltage | 0.6/1 kV |
| Conductor | Stranded copper |
| Insulation | XLPE |
| Armour | Double steel tape |
| Sheath | PVC |
| Cores | 2, 3, 4, 5 |
| Cross-section | 1.5 — 300 mm² |
Applications
Where it's used
- Underground power
- Direct burial
- Outdoor feeders
- Industrial plants
Need a custom build?
Cross-sections, colours, certifications and packing can all be tailored to your project.
Talk to engineering →
